TTB – QTY 10 – Thrifty Bushing

AUD$14.99

1/2″ Hex Bushing for compact packaging of low-load shafts

7 in stock (can be backordered)

SKU: TTB-0004
Category: ,

Description

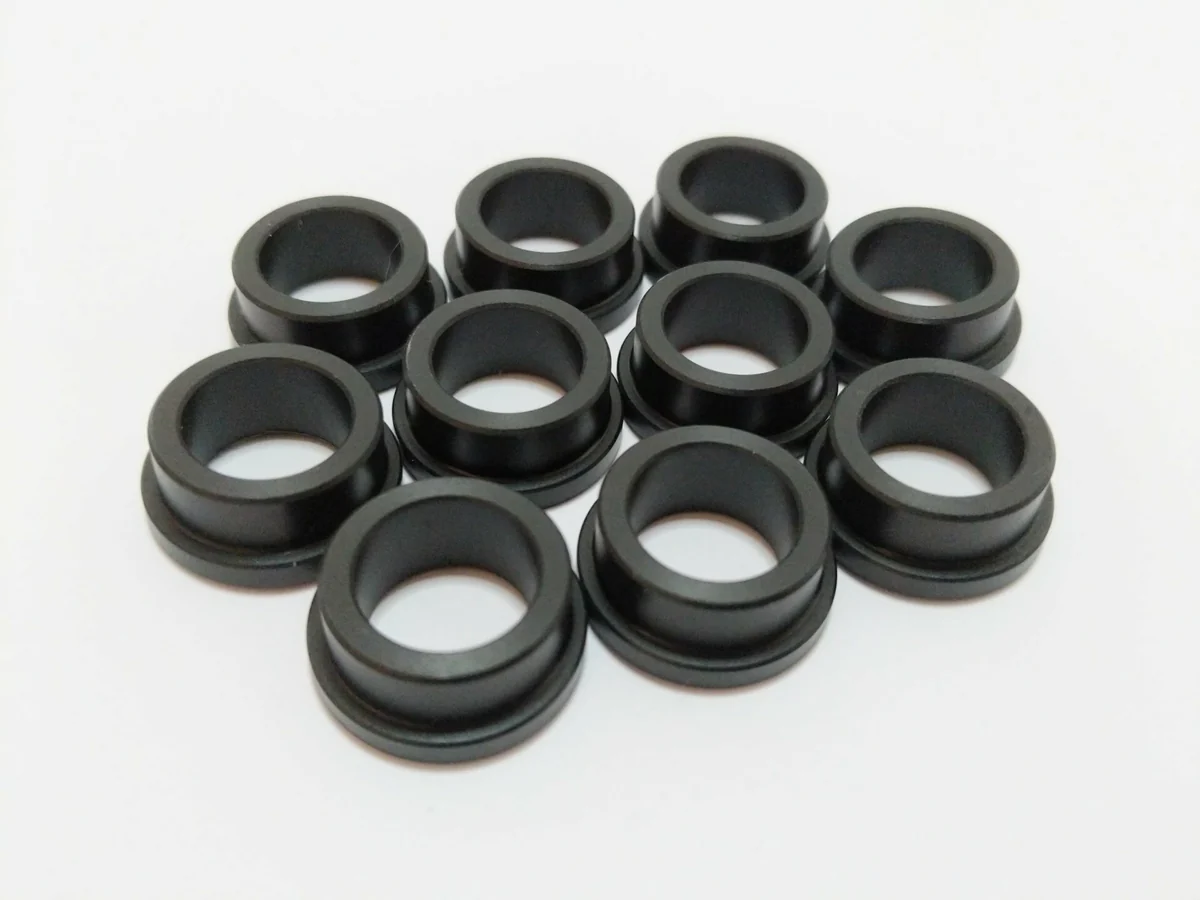

The Thrifty Bushing is a nylon bushing that works with 13.75 mm diameter style hex shaft. This bushing is recommended for low-load applications and will allow you to package mechanisms into even smaller form factors. Thriftybot recommends greasing bushings prior to use.

– Made from Nylon 6/6 – Black only
– .375″ overall width / .125″ thick flange
– .75″ body outer diameter, .875″ flange outer diameter
– .004 lbs per bushing
– Fits on and allows shaft to roll smoothly.
– Sold in packs of 10

See more here: https://www.thethriftybot.com/products/qty-10-the-thrifty-bushing

New Product Alert?

Sign up to receive an email whenever we release a new product.

Additional information

Weight 0.1 kg
Dimensions 10 × 10 × 2 cm
